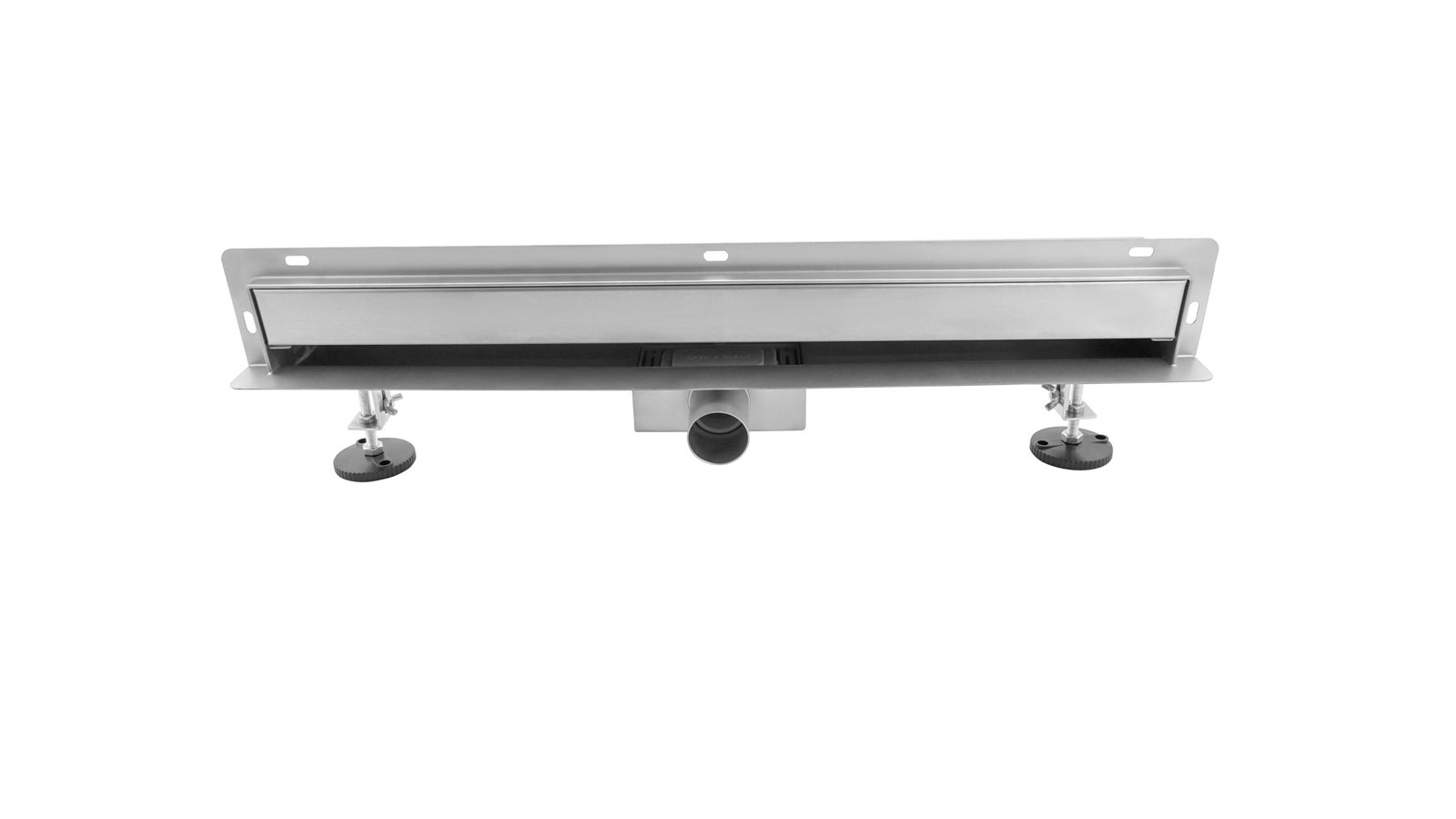

Description
| Length | 300-3000mm |
| Width | 62mm |
| Height | 134mm |
| Thickness | Base 1.2mm,Panel 1.0mm |
| Material | SS304 |
| Flow Rate | 36L/min |
| Outlet Size | 40-50mm |
| Drainage | Horizontal Outlet |
| Adjustable Height | 130-145mm |
| Free Sample | Available |
Skip to content 10+ Years Manufacturing Excellence | 500,000+ Units Exported Annually
MOQ: 50
Samples: Free
Lead time: 15 days
Standard Finishes Available
Color match and other custom options available
Customized logo(Min. order 100 pieces)
Customized packaging(Min. order 100 pieces)
Graphic customization(Min. order 100 pieces)
No Specifications content found for this product.
| Length | 300-3000mm |
| Width | 62mm |
| Height | 134mm |
| Thickness | Base 1.2mm,Panel 1.0mm |
| Material | SS304 |
| Flow Rate | 36L/min |
| Outlet Size | 40-50mm |
| Drainage | Horizontal Outlet |
| Adjustable Height | 130-145mm |
| Free Sample | Available |
A: The C01 Series features a recessed wall-drain design, allowing the panel to be fully embedded into the wall tiles with only a slim drainage gap visible, creating a more discreet look. In contrast, the standard E Series uses an exposed panel design. The C01 Series prioritizes aesthetics, making it ideal for high-end bathroom designs.
A: When installing the C01 Series, the wall must have a reserved installation slot at least 60 mm deep and 120 mm high. The wall thickness should be no less than 120 mm to ensure structural stability and adequate installation space.
A: The C01FR Series adds a mechanical odor-proof valve on top of the standard water seal, effectively blocking odor backflow even if the water seal evaporates. It is particularly suitable for low-usage bathrooms such as vacation homes or guest bathrooms, providing odor protection for several months at a time.
A: Yes. Despite its concealed design, the C01 Series has optimized internal water channels, achieving a drainage capacity of over 28 liters per minute—sufficient for luxury shower systems. For extra-large shower areas, multiple C01 units can be installed to form a drainage system.
A: No. While the C01 Series is recessed, it has a removable inner cartridge that can be taken out with simple tools for thorough cleaning. We recommend deep cleaning every quarter, while routine rinsing of the drain opening is sufficient for daily upkeep.
