10+ Years Manufacturing Excellence | 500,000+ Units Exported Annually
MOQ: 50
Samples: Free
Lead time: 15 days
Standard Finishes Available
Color match and other custom options available
Customized logo(Min. order 100 pieces)
Customized packaging(Min. order 100 pieces)
Graphic customization(Min. order 100 pieces)
Wholesale square shower drains – stainless steel, custom sizes 30–300 cm, OEM/ODM, EN 1253. China factory direct. Get a quote.
| Length | 100-300mm |
| Width | 100-300mm |
| Height | 78mm |
| Thickness | Base 1.2mm,Pattern Panel 1.5mm,Tile Panel 1.0mm |
| Material | SS304 |
| Flow Rate | 35L/min |
| Outlet Size | 40-50mm |
| Drainage | Side-Drainage |

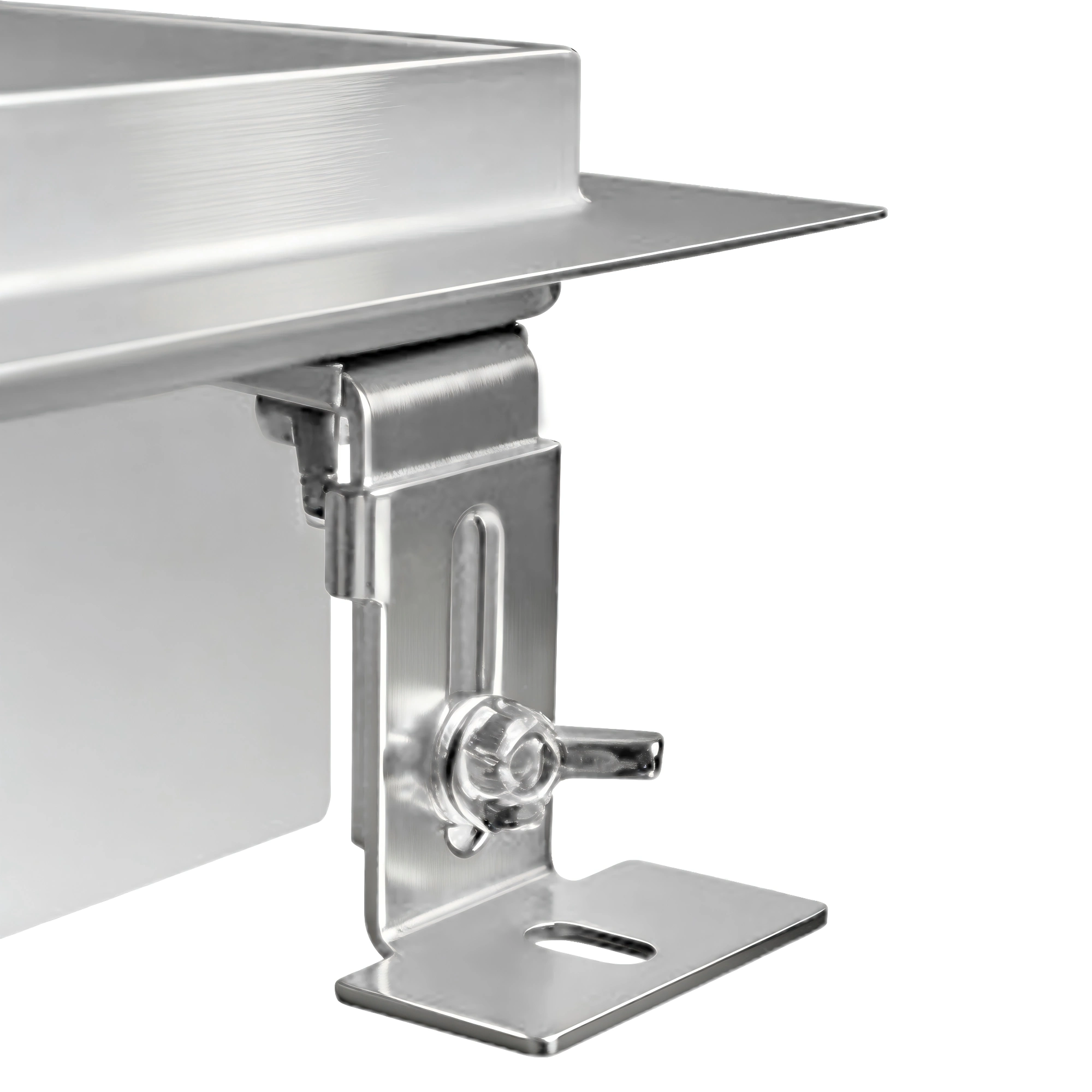

| Adjustable Height | 65-80mm |
| Free Sample | Available |
A: The Q-Series square floor drain is available in three standard sizes: 10×10 cm, 15×15 cm, and 20×20 cm, suitable for bathrooms of different sizes. Custom dimensions are available upon request, with a maximum size of 30×30 cm.

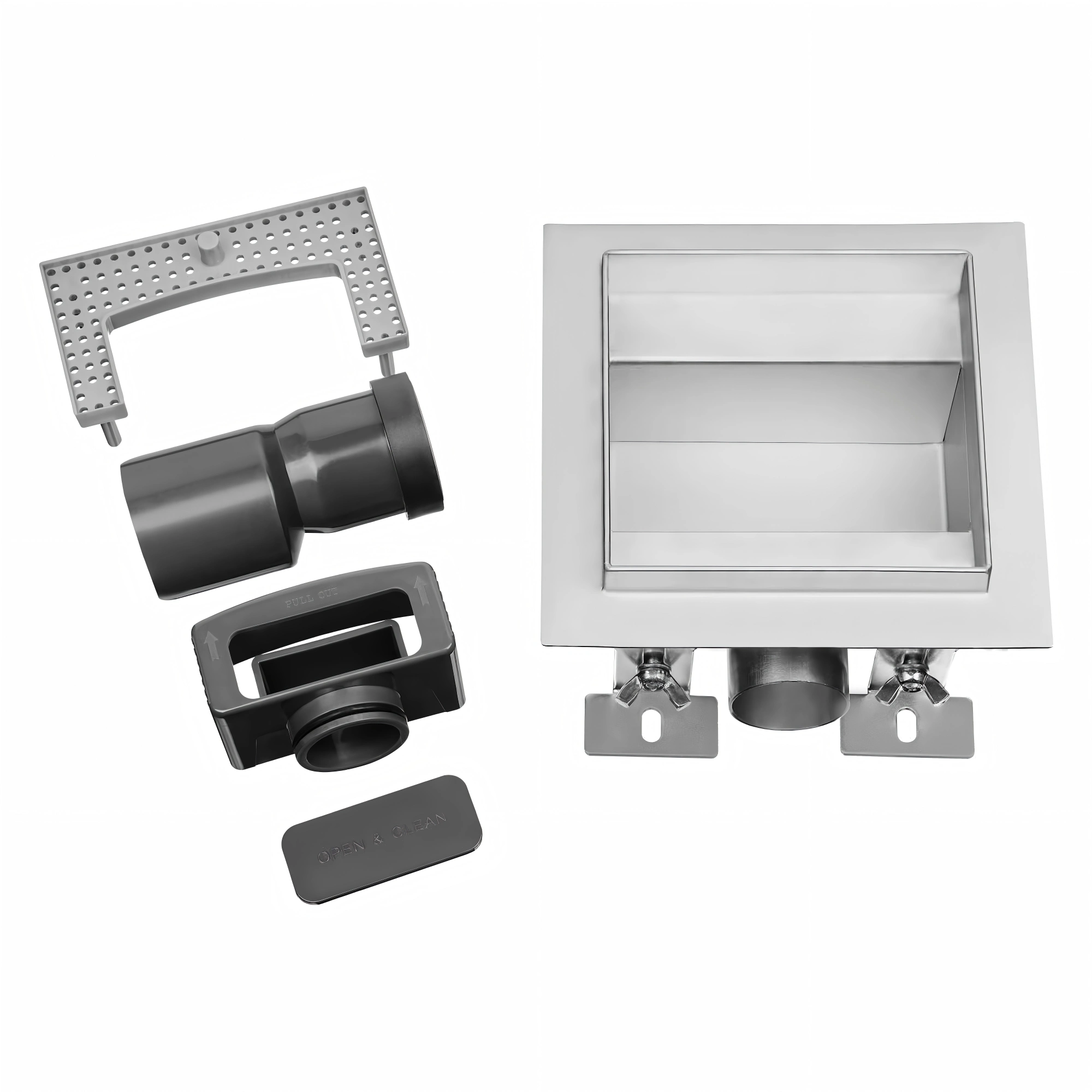

A: While both have the same appearance, the key difference lies in the odor-proof system. The standard Q-Series uses a traditional water seal, while the QFR-Series adds a mechanical odor-proof valve for more reliable long-term odor control—especially suitable for low-usage areas or high-temperature environments.

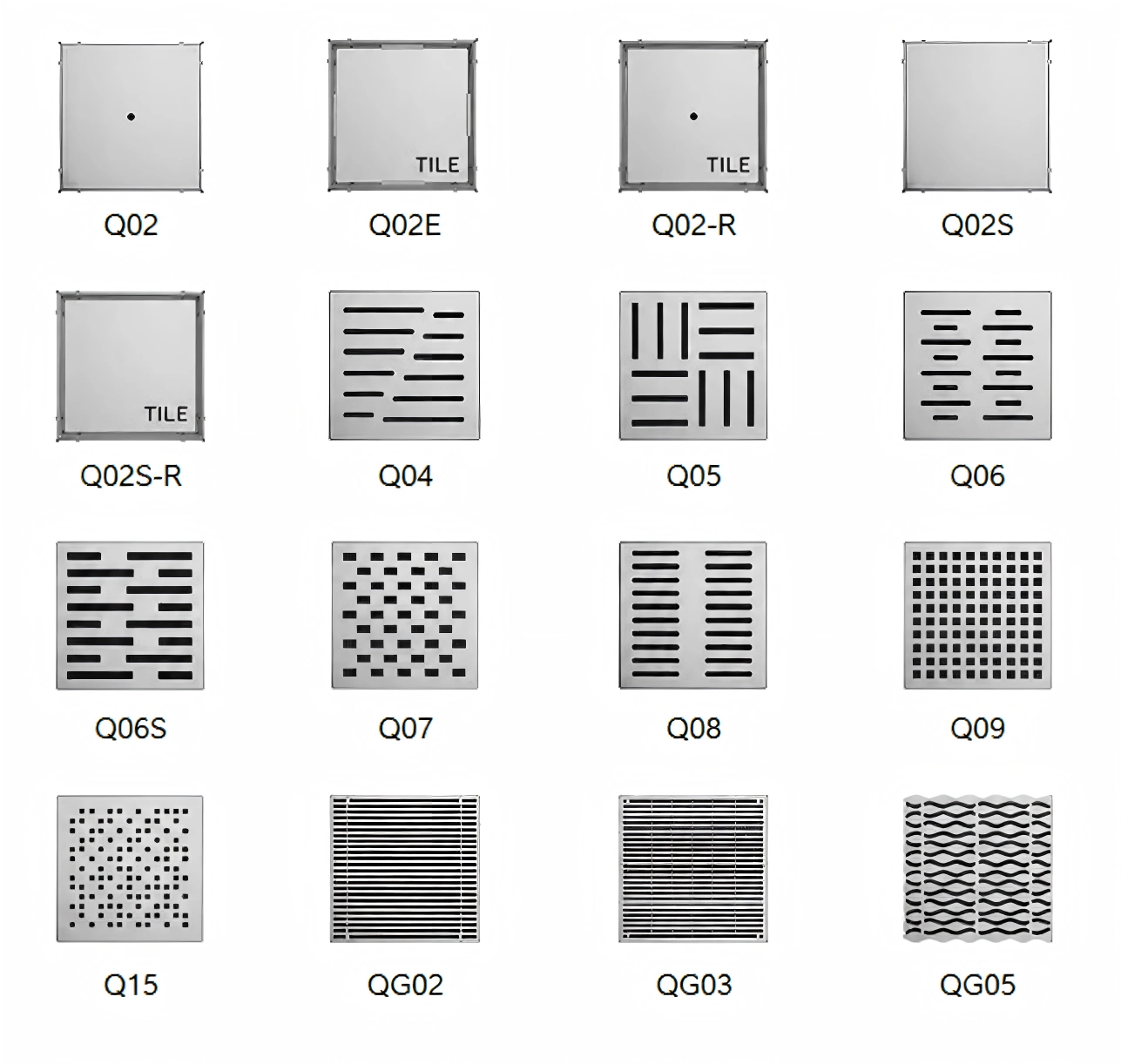

A: We offer a variety of grate patterns, including linear stripes, square grid, wave, and modern minimalist dot designs. All grates are available in surface finishes such as brushed, mirror-polished, matte black, and titanium gold to match different interior styles.
A: Yes, it is highly suitable. The Q-Series offers high drainage efficiency and an anti-overflow design, making it ideal for bathrooms without a clear wet-dry division. Some models feature raised edges to better prevent water from spilling out of the shower area.
A: The standard Q-Series requires an installation height of 80–100 mm, including space for the waterproof layer and slope adjustment. We also offer the Q-S ultra-thin version, with a minimum installation height of 50 mm, perfect for renovation projects with limited space.
