Introduction to Side Outlet Shower Drain
Shower drains are more than just functional plumbing components—they contribute to the efficiency, hygiene, and aesthetics of bathrooms and wet areas. Among the many drain types, the side outlet shower drain has become increasingly popular in modern bathrooms, hotels, and commercial spaces in 2025. This guide explains everything you need to know: its design, advantages, applications, and why manufacturers like Noahhometech are leading the way in innovation.

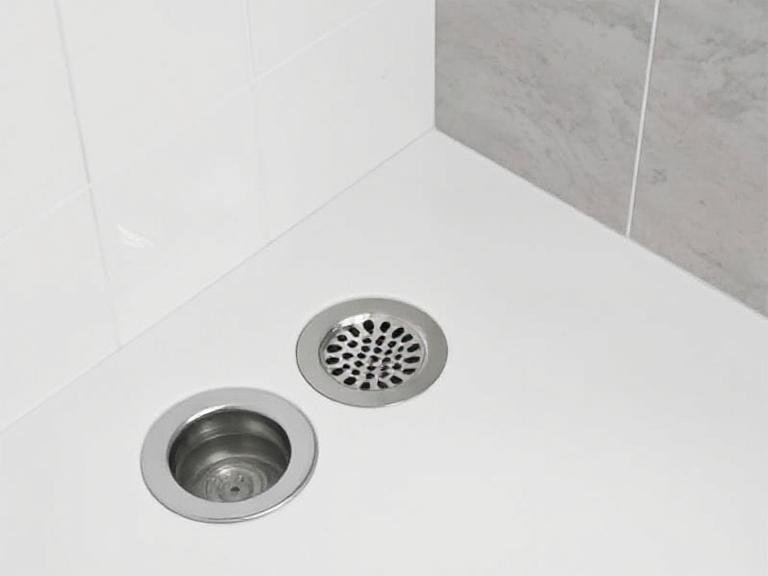

What is a Side Outlet Shower Drain?
A side outlet shower drain is a drainage system designed to direct water flow horizontally rather than vertically. Instead of draining water straight down into the floor pipe, it channels water through an outlet positioned on the side of the drain body, connecting to horizontal plumbing pipes.
Key Characteristics
- Water exits through the side rather than the bottom.
- Often used in low-floor clearance spaces where vertical drainage is not possible.
- Available in linear, square, strip, and wall-mounted designs.
- Ideal for both residential and commercial bathrooms.
Design & Structure of Side Outlet Drains
These drains are carefully engineered to ensure efficient water flow and easy maintenance. High-quality versions use premium materials like 304 stainless steel with PVD finishes for durability and corrosion resistance.
Main Components
- Grate or cover: Decorative surface that blends with bathroom aesthetics.
- Drain body: Houses the channel for water flow.
- Side outlet pipe connection: Connects to the horizontal plumbing line.
- Trap system: Prevents odor and gas backflow.
Benefits of Using Side Outlet Shower Drains
Homeowners and designers prefer side outlet drains for several reasons:
- Space efficiency: Perfect for buildings with restricted floor depth.
- Modern aesthetics: Sleek, minimalistic designs fit contemporary bathrooms.
- Flexibility: Works with linear, square, triangular, or wall drains.
- Odor resistance: Available with traps to prevent foul smells.
- Durability: Stainless steel ensures longevity.
Side Outlet vs. Bottom Outlet Drains
Understanding the difference between side and bottom outlet drains helps in choosing the right option.
Side Outlet
- Water exits sideways.
- Ideal for limited floor clearance.
- Flexible installation for renovations.
Bottom Outlet
- Water drains vertically down.
- Common in traditional bathroom setups.
- Requires deeper subfloor plumbing space.
Applications in Bathrooms & Commercial Spaces
Side outlet shower drains are versatile and widely used in:
- Residential bathrooms: Walk-in showers, wet rooms, luxury bathrooms.
- Hotels & resorts: High-end design with invisible drains.
- Commercial spaces: Spas, gyms, hospitals, and wellness centers.
- Renovations: Especially useful when existing floor depth is limited.
Noahhometech: Innovative Shower Drain Manufacturer
Noahhometech is a leading shower drain manufacturer specializing in OEM and ODM drainage solutions for bathrooms, hotels, and commercial spaces. Their expertise lies in creating visually striking, functional, and durable drainage products.
About Noahhometech
Noahhometech offers:
With globally recognized certifications, rapid prototyping, and premium materials like 304 stainless steel with PVD finishes, Noahhometech provides modern, efficient, and customizable drainage systems worldwide.
Installation Guide
Installing a side outlet shower drain requires precision. Here are the general steps:
Step 1: Planning
- Measure floor depth and slope.
- Select suitable drain type (linear, square, or wall outlet).
Step 2: Drain Placement
- Position the side outlet drain to connect with horizontal pipes.
- Ensure proper slope for water flow.
Step 3: Pipe Connection
- Attach the drain outlet to the existing plumbing line.
- Check for leak-proof joints.
Step 4: Flooring & Finishing
- Install waterproofing membrane.
- Tile or finish the shower floor.
- Install the grate or cover.
Summary Table
| Feature | Side Outlet Drain | Bottom Outlet Drain |
|---|---|---|
| Water Direction | Horizontal (side) | Vertical (down) |
| Best Use Case | Low-floor clearance, renovations | Standard bathroom installations |
| Installation Flexibility | High | Moderate |
| Common Applications | Hotels, spas, modern bathrooms | Traditional homes, deep floors |
FAQs
1. Why choose a side outlet shower drain?
It is ideal when vertical drainage is not possible, especially in renovations or low-clearance flooring systems.
2. Are side outlet drains durable?
Yes, especially when made from 304 stainless steel with PVD finishes, they are highly durable and corrosion-resistant.
3. Can side outlet drains be customized?
Manufacturers like Noahhometech offer full OEM/ODM customization, from linear to invisible designs.
4. Do side outlet drains prevent odors?
Yes, many models include odor-resistant traps to block unpleasant smells.
